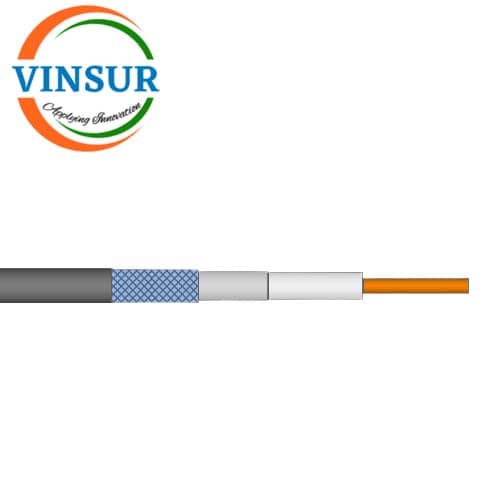

FLEXIFORM COAXIAL CABLE(VSW-FF-CA)
- RF COAXIAL CABLE
- FLEXIFORM COAXIAL CABLE
Description
| CONSTRUCTION SPECIFICATION | ||
| Item | Material | Diameter(mm) |
| Inner conductor | Silver Plated Copper Wire | 0.81±0.02 |
| Dielectric | Profiled Extruded PTFE | 2.31±0.05 |
| Outer Conductor | Copper Foil Tape +Tinned Soaked Copper Wire Braid | Nom. 2.95±0.10 |
| Jacket | LSZH | 3.60±0.10 |
Â
| ELECTRICAL CHARACTERISTICS | |
| Capacitance (pF/m) | 87±2 |
| Impedance（Ω） | 1.50±2 |
| Velocity（%） | 76.8 |
| Jacket Spark(K Vrms) | 8000 |
| Peak Power Rating(kW) | 16 |
| Shielding Effectiveness(dB) | 100 |
| MECHANICAL ENVIRONMENT CHARACTERISTICS | |
| Storage Temp(℃) | -40~+80 |
| Installation Temp(℃) | 1-20~+50 |
| Operating Temp(℃) | -40~+80 |
| Min. Single Bending Radius(mm) | 1.40 |
| ROHS | comply |
