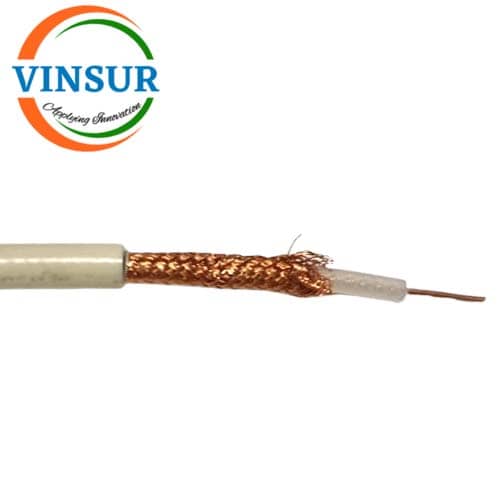

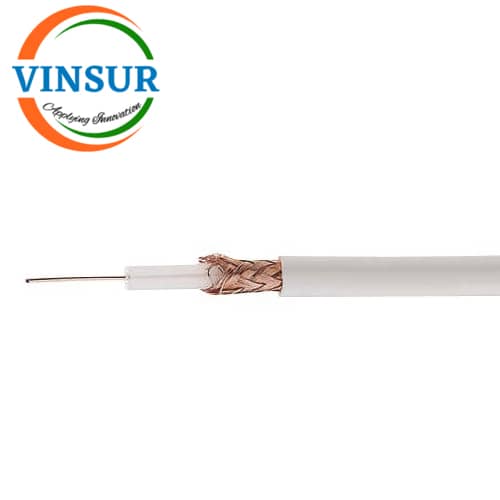

RG-58 Coaxial Cable
P/N : VSW-RG 58-CC
- RG58 Coaxial Cable
- 50Ω
- Max Frequency (GHz) -DC to 3GHz
Applications:
- Radio Communication
- Global Positioning
- Surveillance
- Legacy Networks
Click Here to get Data Sheet
Description
| CABLE CONSTRUCTION | ||
| Description | Material | Size |
| Centre Conductor | Stranded Tinned Copper Braid | 19 x 0.18 |
| Dielectric | Solid PE | Ø 2.95 ± 0.15 |
| Braid | Stranded Tinned Copper Braid | Ø 3.50 ± 0.20 |
| Jacket | PVC Black | Ø 4.95 ± 0.20 |
| ELECTRICAL SPECIFICATIONS | |
| Frequency | 3 GHz |
| Impedance | 50Ω |
| Velocity of Propagation | 66% |
| Capacitance | 100.0 pF/m |
| Min. Bending Radius | 25 mm |
| Nominal Weight | 0.040 Kg/m |
| Voltage Rating DC | 4 kVdc |
| Voltage Rating RMS | 2 kVrms |
| Peak Power Rating | 90 KW |
| Temp. Range | -25°C to +70°C |
