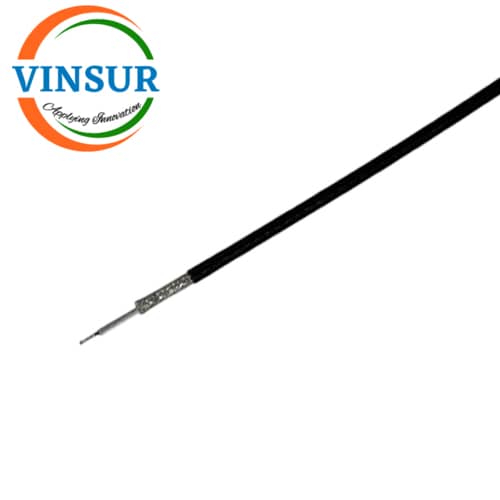

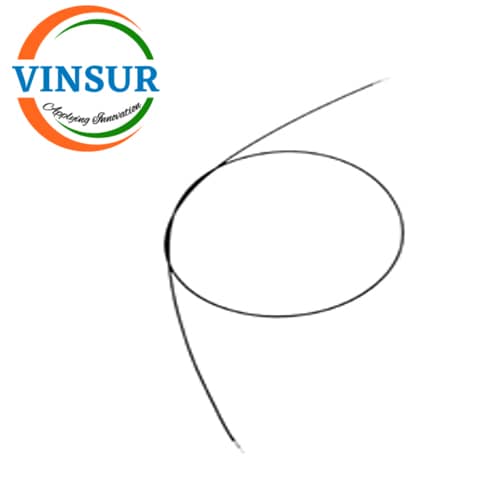

RG-1.13 Coaxial Cable
P/N : : VSW-RG1.13-CC
- RG-1.13 Coaxial Cable
- 50Ω
- Max Frequency (GHz) -DC to 6GHz
Applications:
- Wireless Modules
- Compact Electronics
- Connector Assemblies
Click Here to get Data Sheet
Description
| CABLE CONSTRUCTION | ||
| Description | Material | Size |
| Inner conductor | Silver-plated conductor | 0.15mm |
| Outer conductor | Single-layer tin silk-screened | 0.94mm |
| Insulation | PTFE (polytetrafluoroethylene) | 0.7mm |
| Jacket | FEP (fluoroethylene propylene) | 1.13mm |
| ELECTRICAL SPECIFICATIONS | |
| Impendence | 50Ω |
| Operating Temperature | -40°C ~ +85°C |
| Shielding Effect(dB) | >70 |
| Minimum Bend Radius | 4mm |
