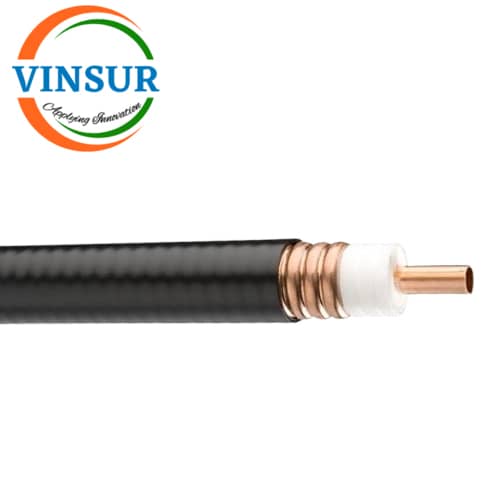

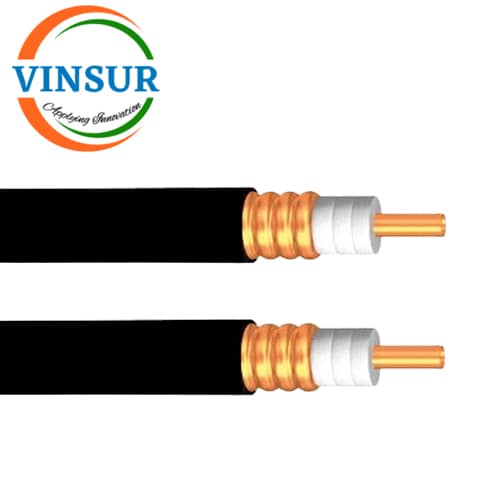

7/8″ Feeder Cable
P/N : VSW-7/8-FC
- 7/8″ Feeder Cable
- 50Ω
- Max Frequency (GHz) -DC to 3GHz
Applications:
- Cellular Networks
- In-Building Solutions (IBS)
- Broadcasting
Click Here to get Data Sheet
Description
| CABLE CONSTRUCTION Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â MATERIAL Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â MM | ||
| Inner conductor | Smooth Copper Tube | 9.00 mm |
| Dielectric | Physical Foam Polyethylene | 22.30 mm |
| Outer conductor | Corrugated Copper Tube | 24.90 mm |
| Jacket | Low Smoke Halogen-free Fire-retardant | 27.50 mm |
| ELECTRICAL CHARACTERISTICS AT +20°C | |
| Impedance | 50±1 Ω |
| Velocity | 89% |
| RF Peak Voltage | 3.00 kV |
| Peak power rating | 91 kW |
| Cut-off frequency | 5.20 GHz |
| Shielding Effectiveness >10MHz | >120 dB |
| Insulation Resistance | 5000 MΩ•km |
