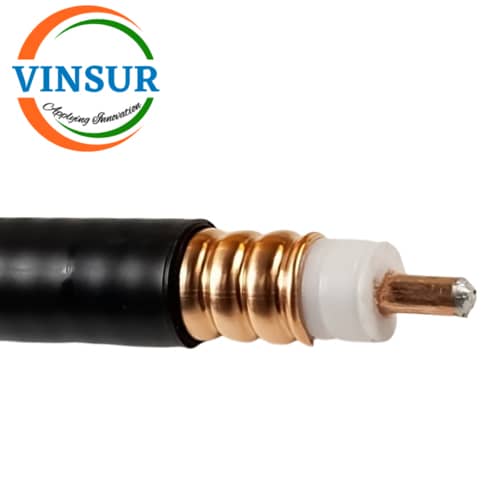

1/2″ Feeder Cable
P/N : VSW-1/2-FC
- 1/2″ Feeder Cable
- 50Ω
- Max Frequency (GHz) -DC to 3GHz
Applications:
- Cellular Networks
- In-Building Solutions (IBS)
- Wireless Broadcasting
Click Here to get Data Sheet
Description
| CABLE CONSTRUCTION SPECIFICATIONS | ||
| DESCRIPTION | MATERIAL AND PLATING | DIMENSION (MM) |
| Inner Conductor | Copper-Clad Aluminium Wire | 4.80mm |
| Dielectric | Physical Foam Polyethylene | 12.30 mm |
| Outer Conductor | Corrugated Copper Tube | 13.80 mm |
| Jacket | Black PE | 12.70mm |
| ELECTRICAL SPECIFICATION | |
| Impedance | 50±1 Ω |
| Velocity | 88% |
| RF Peak Voltage | 1.60 kV |
| Peak Power Rating | 40 kW |
| Cut-off Frequency | 8.8 GHz |
| Shielding Effectiveness >10MHz | >120 dB |
| Insulation Resistance | 5000 MΩ•km |
| Capacitance | 76.0 pF/m(23.2pF/ft) |
