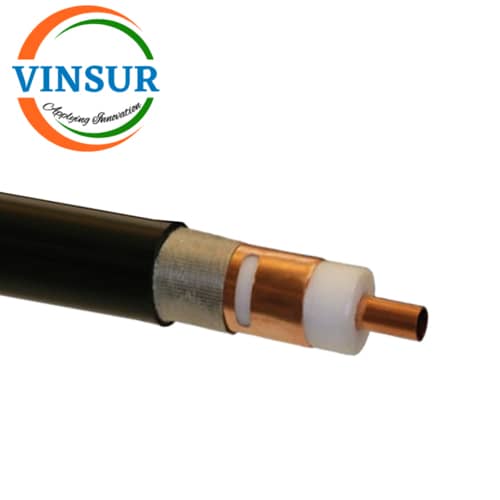

½” Flexible Foam Dielectric LEAKY Feeder Cable
P/N : VSW-1/2LFC
- 1/2″ LEAKY Feeder Cable
- 50Ω
- Max Frequency (GHz) -DC to 10GHz
Applications:
- Underground Mining
- Subway and Railway Tunnels
- Road Tunnels and Parking Garages
- Large Industrial Plants
Click Here to get Data Sheet
Description
| Inner Conductor | Smooth copper tube Nominal 13.40+0.40 mm |
| Dielectric | Foamed polyethylene Nominal 33.0+1.00 mm |
| Outer Conductor | Overlapped copper foil with punched leaky slots 34.00+1.00 mm |
| Fire barrier | Mica Tape Nominal 34.20±0.50 mm |
| Jacket | Flame-Retardant/Halogen-Free black PE Nominal 38.00+1.00 mm |
| ELECTRICAL CHARACTERISTICS | |||
| DC Resistance | Inner Conductor | 2.00 Ω/km | |
| Outer Conductor | 3.00 Ω/km | ||
| Dielectric Strength | DC 10,000V For 1 Min | ||
| Min. Insulation Resistance | 10,000 MΩ.km | ||
| Velocity of Propagation | 89+2% | ||
| Peak Power Rating | 90 kW | ||
| Characteristic Impedance | 50±2Ω | ||
| Capacitance | 76 pF/m | ||
| Jacket Spark Test Voltage | 10000V | ||
| Best operating band Width | 380-450MHz | ||
|
VSWR |
380-450 MHz | Max. 1.30 | |
| 790-960 MHz | Max. 1.30 | ||
| 380-450 MHz | Max. 1.30 | ||
