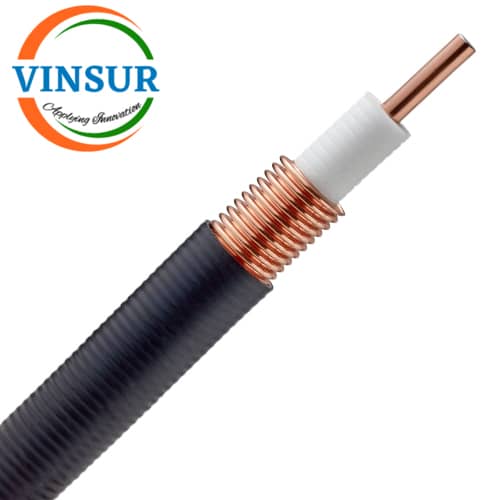

½” Super Flex Coaxial Cable
P/N : VSW-1/2-SFC
- 1/2″ Super Flex Coaxial Cable
- 50Ω
- Max Frequency (GHz) -DC to 3GHz
Applications:
- Base Station Antennas
- In-Building Solutions (IBS/DAS)
- Jumper Assemblies
- Specialized Feeds
Click Here to get Data Sheet
Description
| CABLE CONSTRUCTION SPECIFICATIONS | ||
| DESCRIPTION | MATERIAL AND PLATING | DIMENSION (MM) |
| Inner Conductor | Copper-Clad Aluminium Wire | 3.60 mm |
| Dielectric | Physical Foam Polyethylene | 8.70 mm |
| Outer Conductor | Helical Copper Tube | 12.00 mm |
| Jacket | Black PE | 13.30 mm |
| ELECTRICAL SPECIFICATION | |
| Impedance | 50±1 Ω |
| Cut-off Frequency | 12.5 GHz |
| Shielding Effectiveness | >120 dB |
| Insulation Resistance | 5000 MΩ•km |
| Velocity | 83% |
| RF Peak Voltage | 1.13 kV |
| Peak Power Rating | 19 kW |
| Capacitance | 80.0 pF/m(24.4 pF/ft) |
