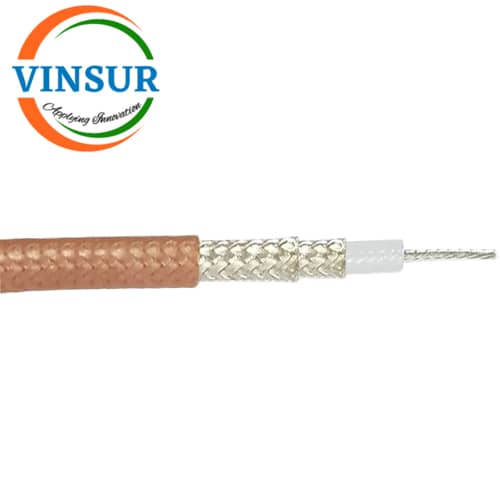

RG-316 Double Sheild Coaxial Cable
P/N : VSW-RG316-DS
- RG316DS Coaxial Cable
- 50Ω
- Max Frequency (GHz) -DC to 6GHz
Applications:
- RF Testing & Instrumentation: Short test leads, network analyzer jumpers.
- Wireless & Telecom: GPS antenna feeds, Wi-Fi modules, and cellular repeater pigtails.
- Embedded and Aerospace Systems: Tight-space internal board wiring requiring high temperature and chemical resistance.
Click Here to get Data Sheet
Description
| CABLE CONSTRUCTION | ||
| Description | Material | Diameter(mm) |
| Centre Conductor | Silver Plated Copper Braid | Ø 0.55 (7 / 0.18) |
| Dielectric | Solid PTFE | Ø 1.52 ±0.2 |
| Braid 1 | Silver Plated Copper | Ø 2.10 (80 / 0.10) (92%) |
| Braid 2 | Silver Plated Copper | Ø 2.50 (80 / 0.10) (84%) |
| Jacket | FEB Brown | Ø 2.92 ±0.2 |
| ELECTRICAL SPECIFICATIONS | |
| Frequency | 6GHz |
| Impedance | 50Ω |
| V.S.W.R | 1.2 Max. |
| Capacitance | 95.3 pF/m |
| Min. Bending Radius | 15.3 mm |
| Nominal Weight | 0.020 Kg/m |
| Insulation Resistance | 3000 MΩ/km |
| Peak Power Rating | 40 KW |
| Temp. Range | -25°C to +85°C |
