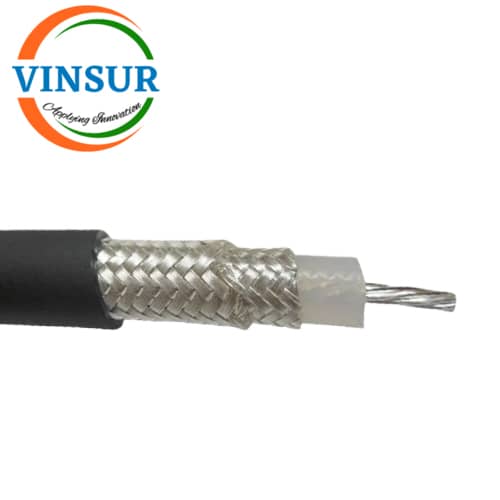

RG214 Coaxial Cable
P/N : VSW-RG-214-CA
- RG214 Coaxial Cable
- 50 ±2Ω
- Max Frequency (GHz) -DC to 3GHz
Applications:
- Radio Frequency (RF) Systems: Used in broadcast, ham radio setups.
- Military and Defense: Deployed in signal transmission and control systems requiring minimal signal loss.
- Laboratory and Testing Equipment: Utilized for interconnecting high-frequency electronic test instruments.
Click Here to get Data Sheet
Description
| CABLE CONSTRUCTION | ||
| Description | Material | Size |
| Inner Conductor | Strand Bare Copper | 7/0.75mm |
| Dielectric | Solid PE | 7.25±0.10mm |
| Outer Conductor | Tinned Copper | 7.9±0.15mm |
| Overall Braid | Tinned Copper | 8.4±0.15mm |
| Jacket | PE | 10.80±0.20 mm |
| ELECTRICAL SPECIFICATIONS | |
| Impedance | 50 ±2Ω |
| Capacitance | 101pF/m |
| Velocity of Propagation | 66% |
| Max. Operating Frequency | 11GHz |
| Max. Operating Voltage | 3700 rms |
| Corona Extinction Voltage | 5000Vrms |
| Voltage Withstand | 10000Vrms |
| Spark Test | 5000Vrms |
